ESL   솔루션

아펠레스는 글로벌 전자가격표시기 공급업체인 솔루엠의 전략적 파트너입니다.

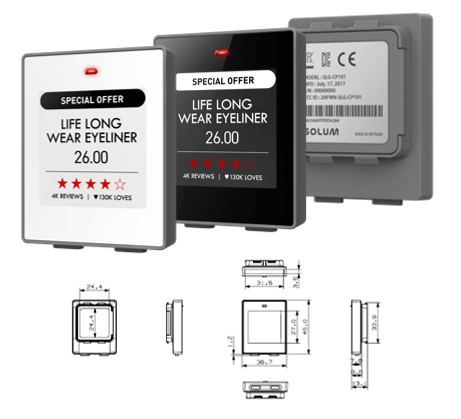

1.6″

  • MODEL W:EL016H3WRA B:EL016H3BRA
  • DIMENSION (mm) 36.7 × 45.0 × 13.1
  • DISPLAY AREA (mm) 27.0 × 27.0
  • RESOLUTION (Pixel) 200 x 200
  • PIXEL DENSITY 184 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORSBW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

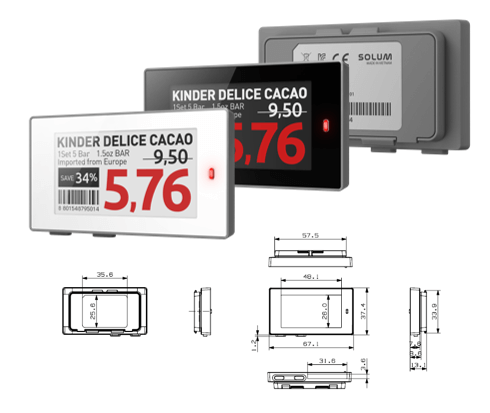

    • 2.2″

  • MODELW:EL022H3WRA B:EL022H3BRA
  • DIMENSION (mm) 67.1 × 37.4 × 13.1
  • DISPLAY AREA (mm) 48.1 × 26.0
  • RESOLUTION (Pixel) 296 × 160
  • PIXEL DENSITY 156 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

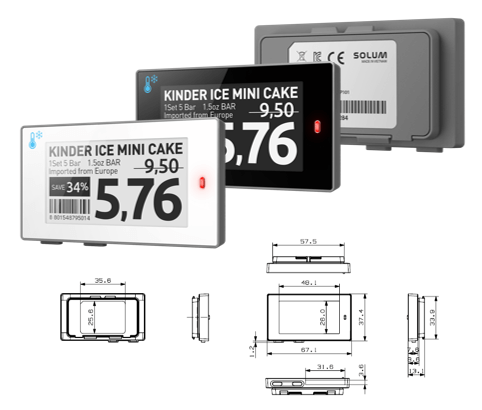

    • 2.2 Freezer

  • MODEL W:ELF22H3WMA B:ELF22H3BMA
  • DIMENSION (mm) 67.1 × 37.4 × 13.1
  • DISPLAY AREA (mm) 48.1 × 26.0
  • RESOLUTION (Pixel) 296 × 160
  • PIXEL DENSITY 156 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE -25 ~ 0°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 Buttons
  • LED 7 Colors

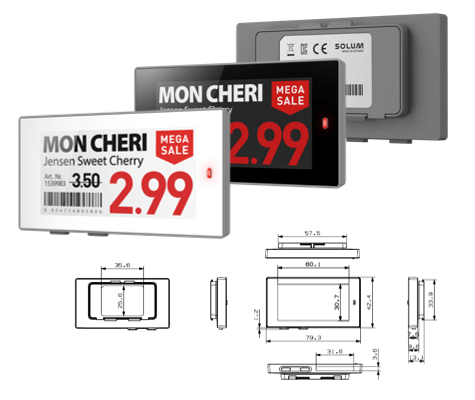

    • 2.6"

  • MODEL W:EL026H3WRA B:EL026H3BRA
  • DIMENSION (mm) 79.3 × 42.4 × 13.1
  • DISPLAY AREA (mm) 60.1 × 30.7
  • RESOLUTION (Pixel) 360 × 184
  • PIXEL DENSITY 152 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

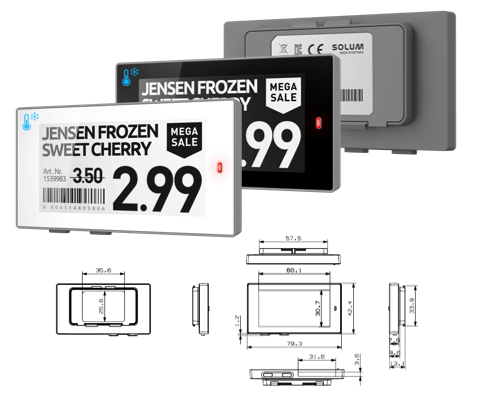

    • 2.6" Freezer

  • MODEL W:ELF26H3WMA B:ELF26H3BMA
  • DIMENSION (mm) 79.3 × 42.4 × 13.1
  • DISPLAY AREA (mm) 60.1 × 30.7
  • RESOLUTION (Pixel) 360 × 184
  • PIXEL DENSITY 152 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE -25 ~ 0°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

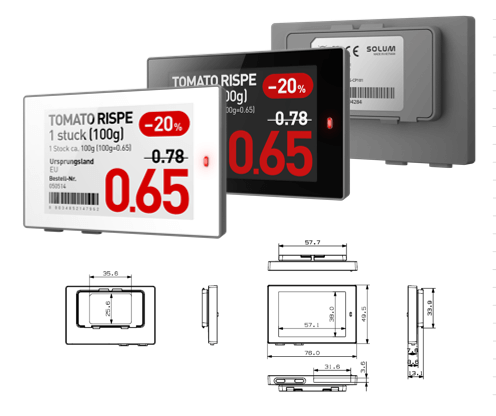

    • 2.7″

  • MODEL W:EL027H3WRA B:EL027H3BRA
  • DIMENSION (mm) 76.0 × 49.5 × 13.1
  • DISPLAY AREA (mm) 557.3 × 38.1
  • RESOLUTION (Pixel) 300 × 200
  • PIXEL DENSITY 133 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

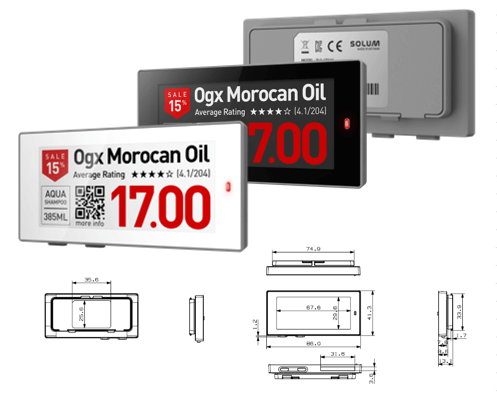

    • 2.9″

  • MODEL W:EL029H3WRA B:EL029H3BRA
  • DIMENSION (mm) 86.0 × 41.3 × 13.1
  • DISPLAY AREA (mm) 67.6 × 29.6
  • RESOLUTION (Pixel) 384 × 168
  • PIXEL DENSITY 144 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

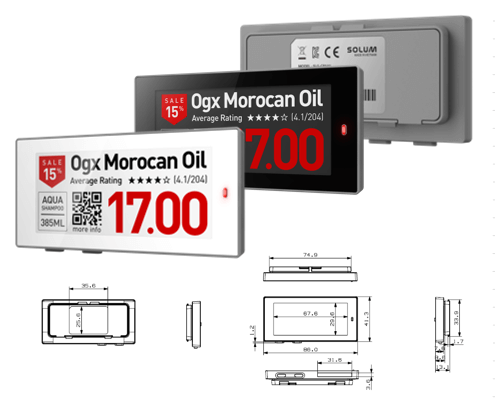

      • 2.9″Freezer

    • MODEL W:ELF29H3WMA B:ELF29H3BMA
    • DIMENSION (mm) 86.0 × 41.3 × 13.1
    • DISPLAY AREA (mm) 67.6 × 29.6
    • RESOLUTION (Pixel) 384 × 168
    • PIXEL DENSITY 144 dpi
    • DISPLAY TECHNOLOGY Full Graphic E-ink Display
    • BEZEL COLOR White or Black, Customizable
    • PIXEL COLORS BW
    • VIEWING ANGLE Nearly 180˚
    • USABLE PAGES 7pages
    • OPERATING TEMPERATURE -25 ~ 0°C
    • NFC FeliCa NFC Forum Type 3
    • WATERPROOF IP67
    • BUTTON 2 button
    • LED 7 Colors

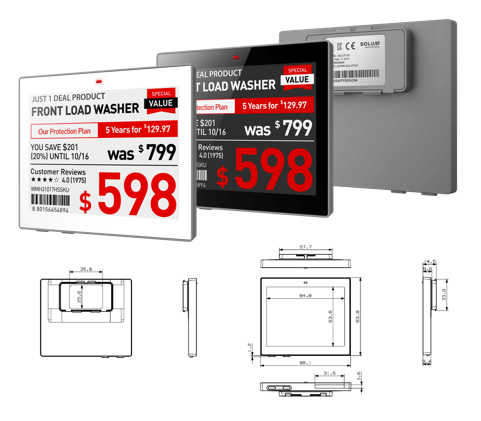

    4.2"

  • MODEL W:EL042H3WRA B:EL042H3BRA
  • DIMENSION (mm) 98.1 × 83.8 × 14.5
  • DISPLAY AREA (mm) 84.8 × 63.6
  • RESOLUTION (Pixel) 400 × 300
  • PIXEL DENSITY 120 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

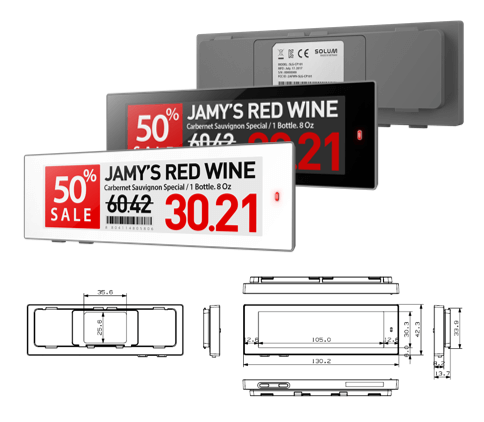

    • 4.3″

  • MODEL W:EL043H3WRA B:EL043H3BRA
  • DIMENSION (mm) 130.3 × 42.4 × 13.9
  • DISPLAY AREA (mm) 105.4 × 30.7
  • RESOLUTION (Pixel) 522 × 152
  • PIXEL DENSITY 125 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

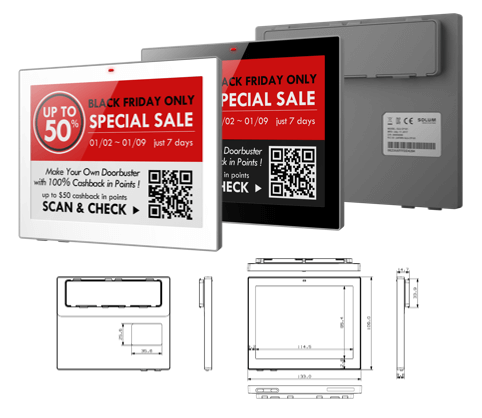

    • 6.0″

  • MODEL W:EL060H3WRA B:EL060H3BRA
  • DIMENSION (mm) 133.0 × 109.0 × 14.7
  • DISPLAY AREA (mm) 114.9 × 85.8
  • RESOLUTION (Pixel) 600 × 448
  • PIXEL DENSITY 132 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR / BWY
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 3 pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

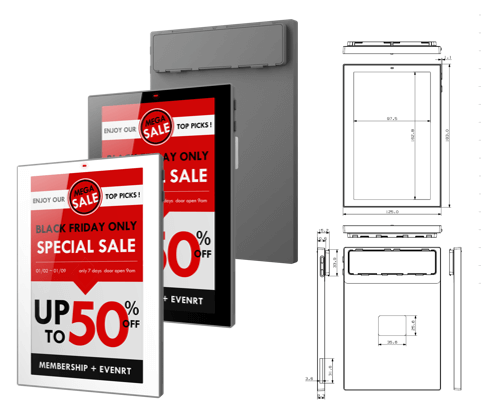

    • 7.5″

  • MODEL W:EL075H3WRA B:EL075H3BRA
  • DIMENSION (mm) 125.0 × 183.0 × 15.2
  • DISPLAY AREA (mm) 163.2 × 97.9
  • RESOLUTION (Pixel) 800x480
  • PIXEL DENSITY 126 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 3 pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors

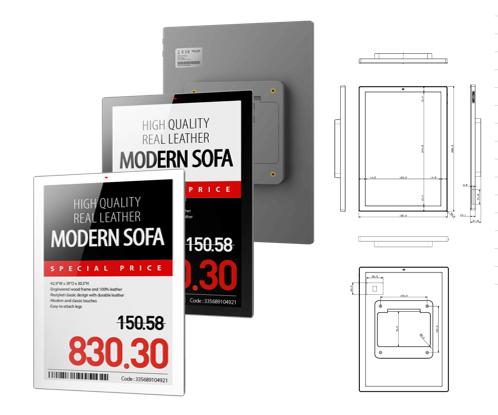

    • 11.6″

  • MODEL W:EL116H3WRA B:EL116H3BRA
  • DIMENSION (mm) 192.0 × 268.0 × 21.9
  • DISPLAY AREA (mm) 163.0 × 244.5
  • RESOLUTION (Pixel) 640 × 960
  • PIXEL DENSITY 100 dpi
  • DISPLAY TECHNOLOGY Full Graphic E-ink Display
  • BEZEL COLOR White or Black, Customizable
  • PIXEL COLORS BW / BWR
  • VIEWING ANGLE Nearly 180˚
  • USABLE PAGES 7 pages
  • OPERATING TEMPERATURE 0 - 40°C
  • NFC FeliCa NFC Forum Type 3
  • WATERPROOF IP67
  • BUTTON 2 button
  • LED 7 Colors
